ATS.08.07.92X

PRODUCTS

This product belongs to:

UHF BAND IV-V DVB-T

ATS.08.07.92X

ANTENNA FEATURES

  • Turnstile antenna 5.5 dBd gain.
  • Horizontal polarization.
  • Broadband 470÷862 MHz.
  • Omnidirectional radiation pattern.
  • Designed for digital and/or analogue services. – Plug-and-play installation.

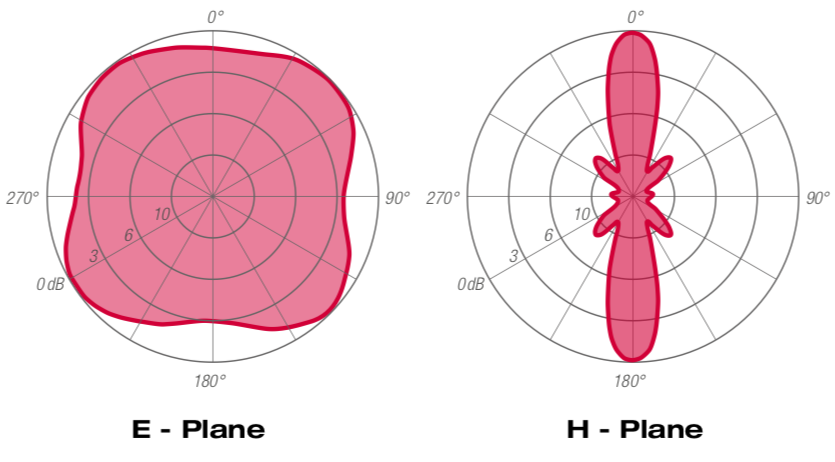

RADIATION PATTERNS (Mid Band)

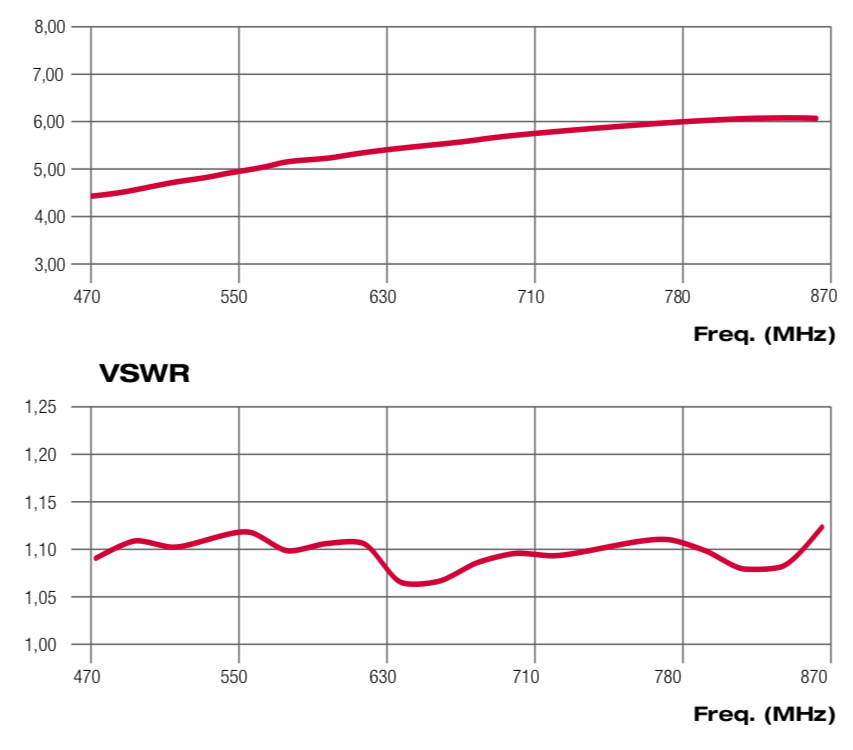

ELECTRICAL DATA
WORKING BAND:470-862 MHz
BANDWIDTH:UHF IV/V band
GAIN:5.5 dBd (7.7 dBi)
VSWR:≤ 1.12:1 (-25 dB)
POLARIZATION:Horizontal
IMPEDANCE:50 Ohm balanced
HALF POWER BEAMWIDTH:E-Plane - 360° H-Plane - 22°°
LIGHTNING PROTECTION:All metal parts DC grounded including inner conductors
Optional vertical lightning protection system
AVAILABLE VERSION AND CODE:ATS0807920 - DIN 7/16" female - 1000W rms
ATS0807921 - N female - 400W rms
ATS0807922 - EIA 7/8" - 2000W rms
MECHANICAL DATA
MATERIALS:Aluminium, hot dip galvanised steel and stainless steel
MOUNTING:Directly on supporting mast (dial. 60-114mm) safety hoist hook
MOUNTING BRACKETS:Included
ICING PROTECTION:Whole antenna fully covered by ABS radome Standard color white
TREATMENTS:Bottom base, cover in stain steel
Bracket and bolts in hot dip galvanised steel
Silver-plated connector and lines
Military norms treatment (MIL-C-5541) dipoles
PRESSURIZATION:No
ANTENNA DIMENSIONS:364x364x1119 mm (14.33x14.33x47.2 in)
WEIGHT:23 kg (50.7 lb)
WIND SURFACE:0.44 m2 (4.73 ft2) front - 0.44 m2 (4.73 ft2) side
WIND LOAD (160 km/h and 30°C)0.35 kN front - 0.35 kN side
SURVIVAL WIND:180 km/h (111.85 mph)
PACKING DIMENSIONS:Wooden cage (ISPM-15)
450x550x1520 mm - 40kg
(17.7x21.65x59.84 in - 88.18 lb)
SPECIAL FEATURES:Optional vertical lightning protection system
Bottom base flange upon request

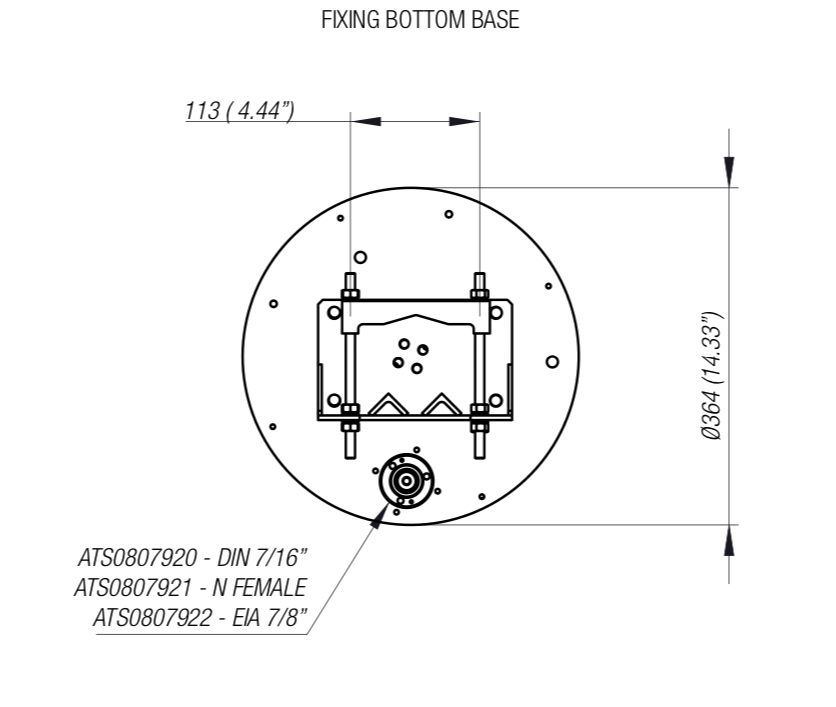

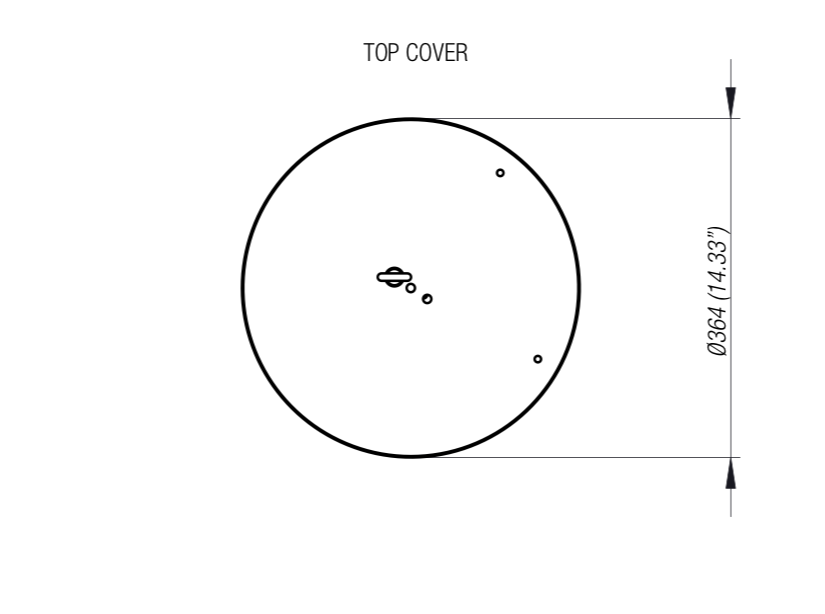

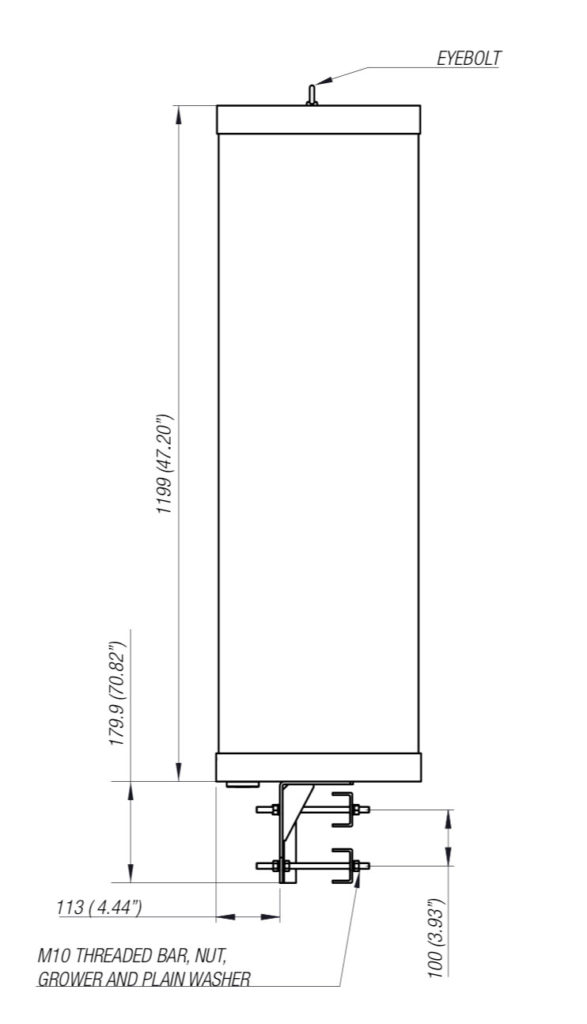

ANTENNA DIMENSIONAL DETAILS
ARRAY VERTICAL HEIGHT
OPTIONS & SERVICES
PATTERN DESIGN:Custom azimuth and elevation (beam tilt and null fill) patterns can be designed to meet specific protection/coverage requirements
PATTERN CERTIFICATION:Proof-of-performance factory test and pattern measurements on ALDENA test plan area
MOUNTING HARDWARE:Turn-key antenna delivery
Tower top/side spine
Special hardware brackets
TRANSMISSION LINE:Transmission line system design and layout
COMBINERS/FILTERS:Combiners/Filters to suit requirements can be supplied
CALCULATION SERVICES:Coverage/interference simulations EM Near Field control and reduction (Environmental impact studies)
ON-SITE SERVICES:Site Survey and Inspection
Installation/commissioning and supervisioning
Drive test & EM Field strength measurements
After sales maintenance
TRAINING:Technical training certification and consultancy

Specifications are subject to change without notice..
