VHF BAND III - DAB
ADB.01.04.2xx
ANTENNA FEATURES
- Dipole antenna.
- Vertical polarization.
- Broadband 174÷230 MHz.
- Omnidirectional radiation pattern.
- Stainless steel or aluminium version.
- Analogue/Digital Service.

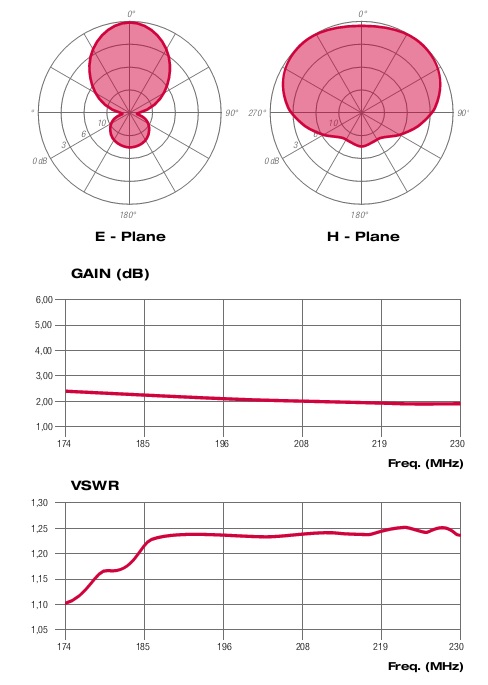

RADIATION PATTERNS (Mid Band)
ELECTRICAL DATA
| WORKING BAND: | 174-230 MHz |
| BANDWIDTH: | VHF band III |
| GAIN: | 2.2 dBd (4.5 dBi) |
| VSWR: | ≤ 1.25:1 (-19 dB) |
| POLARIZATION: | Vertical |
| IMPEDANCE: | 50 Ohm balanced |
| HALF POWER BEAMWIDTH: | E-Plane - 75° H-Plane - 203° H-Plane - 23° |
| LIGHTNING PROTECTION: | All metal parts DC grounded including inner conductors |
| AVAILABLE VERSION AND CODE: | ADB0104211- DIN 7/16 female - max 2000W rms ADB0104210 - EIA 7/8” - max 3500W rms ADB0104231- DIN 7/16 female - max 2000W rms ADB0104230- EIA 7/8” - max 3500W rms |
MECHANICAL DATA
| MATERIALS: | Aluminium (version ABP010421X) Stainless steel (version ABP010423X) Hot dip galvanized steel bracket and bolts |
| MOUNTING: | Directly on supporting structure |
| MOUNTING BRACKETS: | Included for Ø40÷114mm pipe (Ø1 5/8” - 4”) |
| ICING PROTECTION: | Antenna body covered by ABS radome |
| TREATMENTS: | Antenna body military norms treatement (MIL-C-5541 ver. ADB010421X) Military norms treatement (MIL-C-5541) internal lines Silver plated connector |
| PRESSURIZATION: | No |
| ANTENNA DIMENSIONS: | 670x535x160 mm (26.4x21.06x6.3 in) |
| ANTENNA WEIGHT: | 4.3 kg (9.5 lb) (version ADB010421X) 8.0 kg (17.63 lb) (version ADB010423X) |
| BRACKET WEIGHT: | 2.4 kg (5.3 lb) |
| WIND SURFACE: | 0.11m2 (1.18ft2) front - 0.19m2 (2.04 ft2) side |
| WIND LOAD (160 km/h and 30°C) (160 km/h and 30°C) | 0.08 kN front - 0.19 kN side |
| SURVIVAL WIND: | 220 km/h (136.7 mph) |
| PACKING DIMENSIONS: | Box 800x800x200mm - 10kg (31.5x31.5x7.8 in - 22.04lb) |

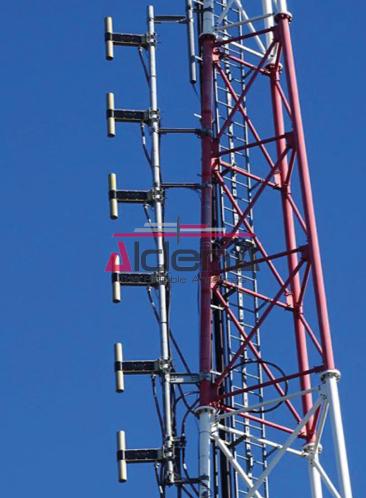

ARRAY FEATURES
- Omnidirectional o directional patterns
- Equal or unequal power distribution system
- Configurable for specific azimut and elevation pattern
- Suitable for multiplexing many channels
ARRAY ELECTRICAL DATA
| FREQUENCY RANGE | 174 ÷ 230 MHz |
| IMPEDANCE | 50 ohm |
| CONNECTOR | EIA flange according to system power rating |
| POWER RATING | The antenna system can accept any power according to requirements |
| VSWR | ≤ 1.17 in the operating channels or ≤ 1.25 throughout the frequency range Antenna system VSWR value also depending from the supporting structure |
| POLARIZATION | Vertical |
| GAIN | Refer to table |
| HORIZONTAL PATTERN | Omnidirectional |
| VERTICAL PATTERN | Null fill, beam tilt and special requirements to order |
| OTHER FEATURES | Antenna components and feed harnesses can be optimized for channels of interest. |
ARRAY MECHANICAL DATA

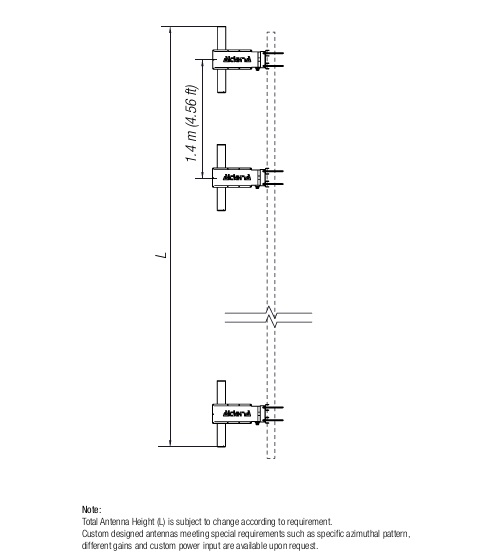

| HEIGHT OF ARRAY | Subject to number of bays |
| TOTAL NET WEIGHT | Refer to table |
| WIND LOAD | Refer to table |
| PRESSURIZABLE | No |
| MOUNTING HARDWARE | Optional mounting for side mount configuration |

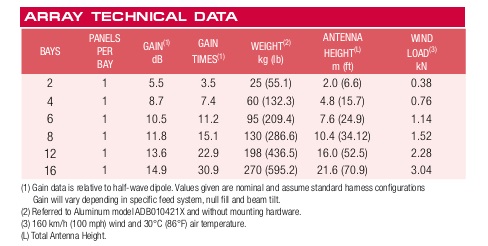

ARRAY TECHNICAL DATA

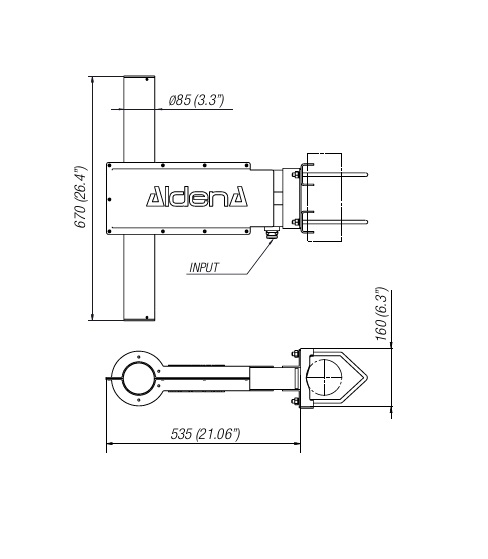

ANTENNA DIMENSIONAL DETAILS

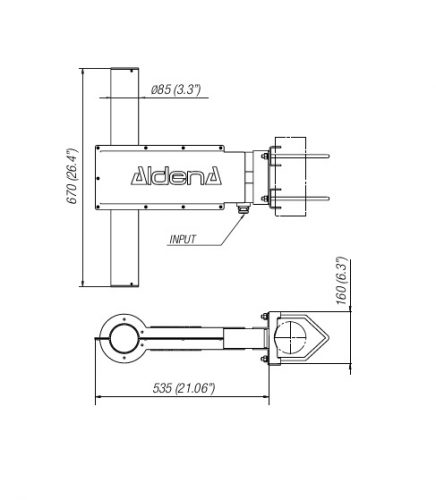

ANTENNA DIMENSIONAL DETAILS
OPTIONS & SERVICES
| PATTERN DESIGN | Custom azimuth and elevation (beam tilt and null fill) patterns can be designed to meet specific protection/coverage requirements |
| PATTERN CERTIFICATION | Proof-of-performance factory test and pattern measurements on ALDENA test plan area |
| MOUNTING HARDWARE | Turn-key antenna delivering Tower top/side spine Special hardware/brackets |
| TRANSMISSION LINE | Transmission line system design and layout |
| COMBINERS/FILTERS | Combiners/Filters to suit requirements can be supplied |
| CALCULATION SERVICES | Coverage/interferfence simulations EM Near Field control and reduction (Environmental impact studies) |
| ON-SITE SERVICES | Site Survey and Inspection Installation/commissioning and supervisioning Drive test & EM Field strength measurements After sales maintenance |
| TRAINING | Techical training certification and consultancy |
Specifications are subject to change without notice.
