FM RADIO
VHF BAND II FM
AST.02.02.23X
ANTENNA FEATURES
- Yagi 2 elements tuned antenna.
- Vertical or horizontal polarization.
- Bandwidth 0.2 MHz.
- Directional radiation pattern.
- Stainless steel.
- Demountable.
ELECTRICAL DATA
WORKING BAND: | 87.5 - 108 MHz |
BANDWIDTH: | 0.2 MHz |
GAIN: | 5.0 dBd (7.2 dBi) |
VSWR: | ≤ 1.1:1 (-26.4 dB) |
POLARIZATION: | Vertical or horizontal |
IMPEDANCE: | 50 Ohm unbalanced |

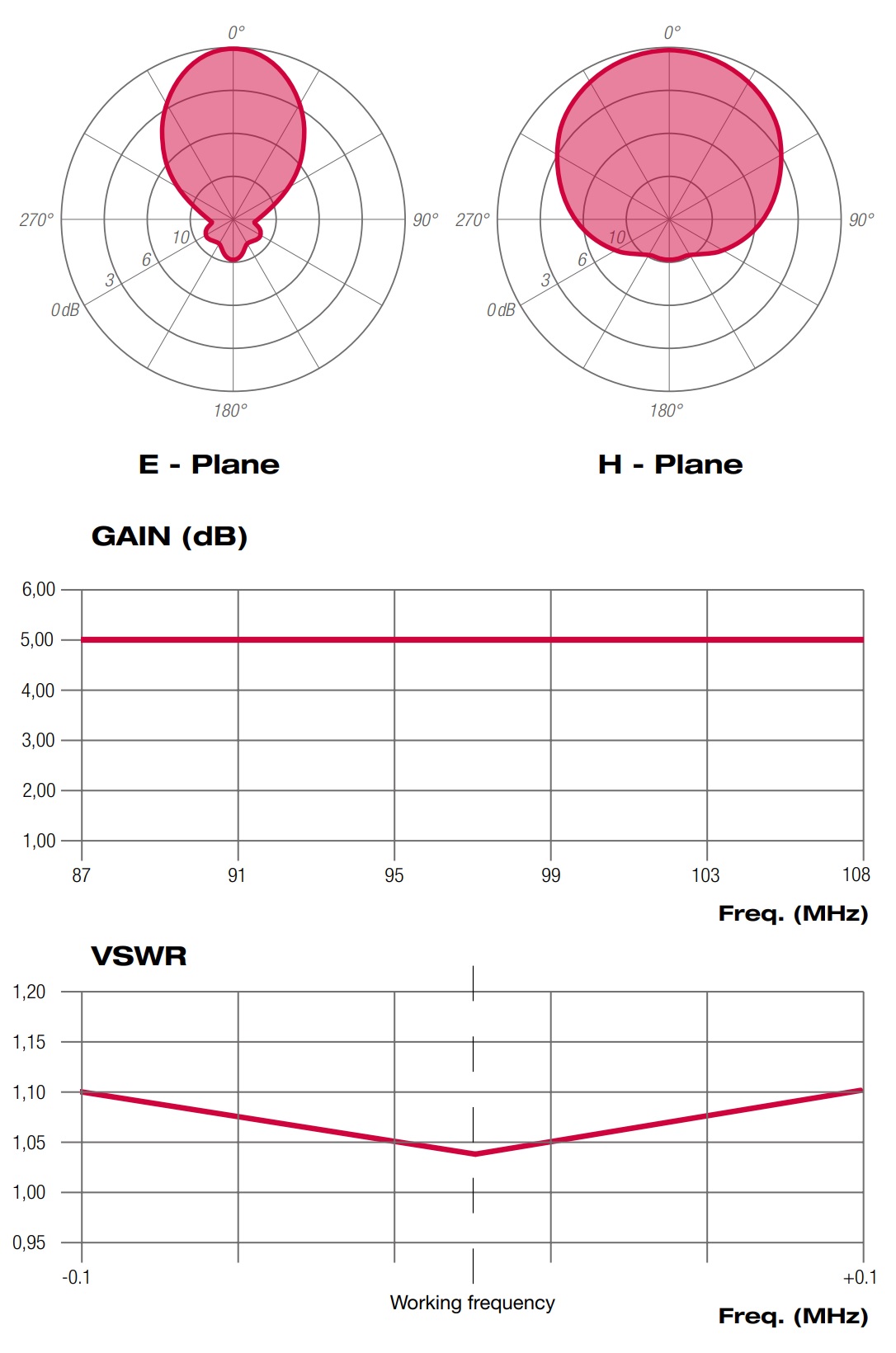

HALF POWER BEAMWIDTH: | E-Plane - 70° H-Plane - 131° |
LIGHTNING PROTECTION: | All metal parts DC grounded including inner conductors |
AVAILABLE VERSION AND CODE: | AST0202335 - N - max 400W rms AST0202336 - DIN 7/16 female - max 1200W rms AST0202337 - EIA 7/8” - max 1800W rms |
MECHANICAL DATA
MATERIALS: | Stainless steel body, bracket and bolts Aluminum junctions |
MOUNTING: | Directly on supporting structure |
MOUNTING BRACKETS: | Included for Ø60÷114mm pipe (Ø 2.36” - 4”) |
ICING PROTECTION: | Optional ABS radome (Code XRAST25) |
TREATMENTS: | Aluminum componets military norms treatement (MIL-C-5541) Silver plated connector |
PRESSURIZATION: | No |

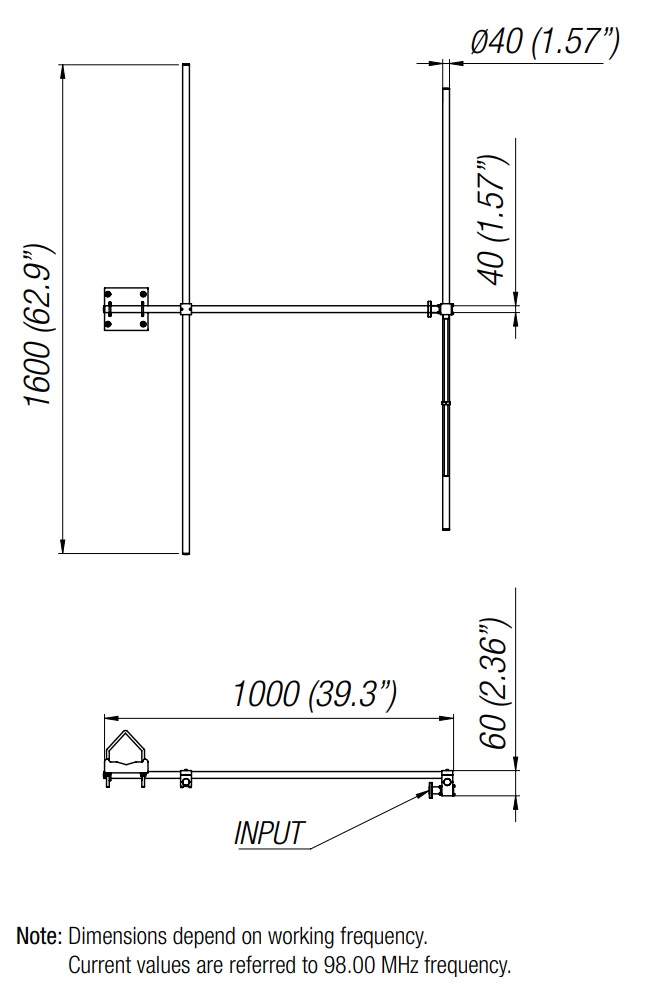

ANTENNA DIMENSIONS: | 1600x1000x60 mm (62.9x39.3x2.36 in)* |
ANTENNA WEIGHT: | 4 kg (8.81 lb)* |
WIND SURFACE: | 0.04m2 (0.43ft2) front - 0.11m2 (1.18 ft2) side* |
WIND LOAD (160 km/h and 30°C) (160 km/h and 30°C) | 0.03 kN front - 0.08 kN side* |
SURVIVAL WIND: | 160 km/h (99.4 mph) |
PACKING DIMENSIONS: | Box 1700x200x150mm - 6kg * (66.9x7.8x5.9 in - 13.2 lb) |
Note: (*) Dimensions depend on working frequency. Current values are referred to 98.00 MHz frequency.

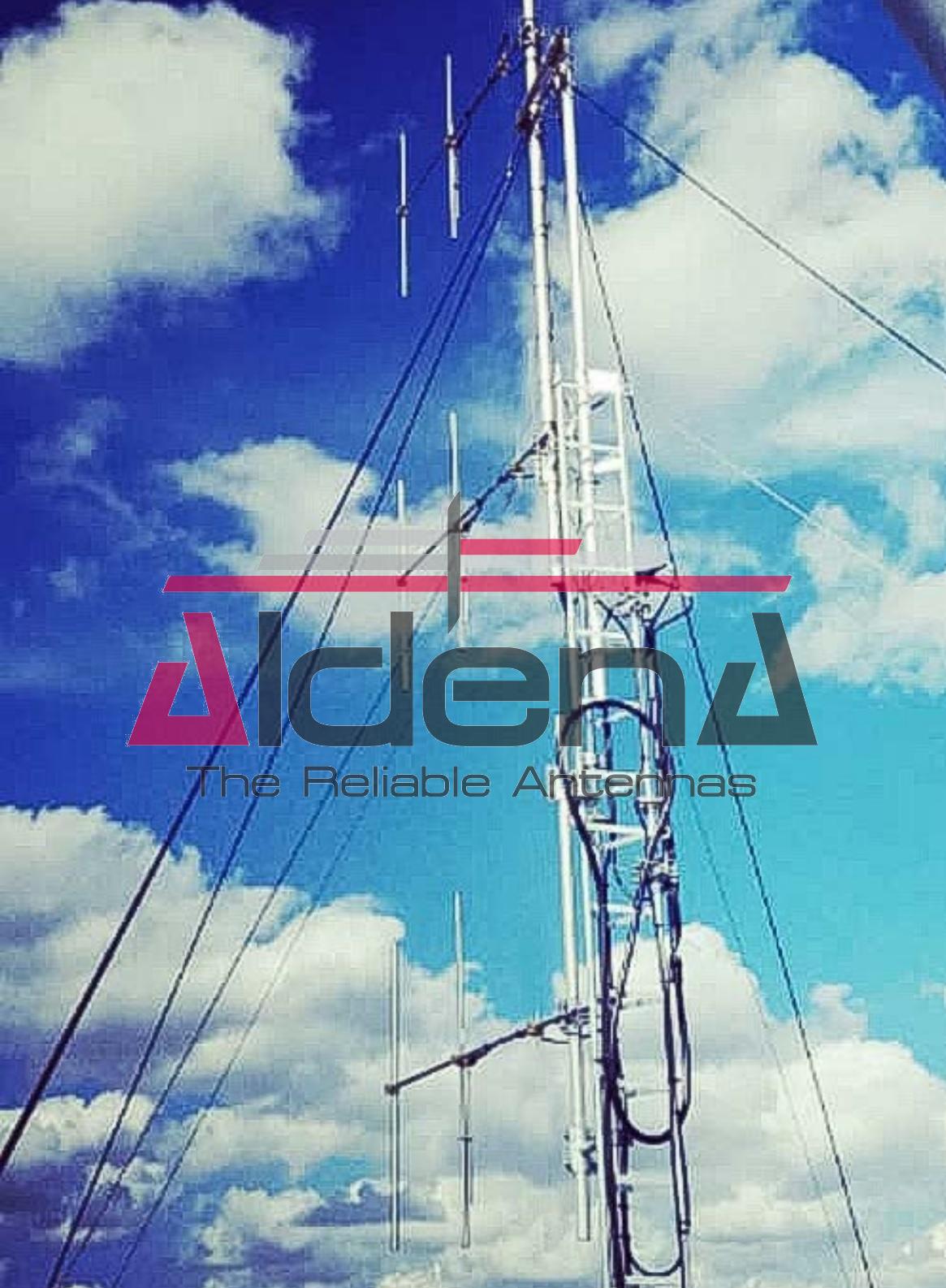

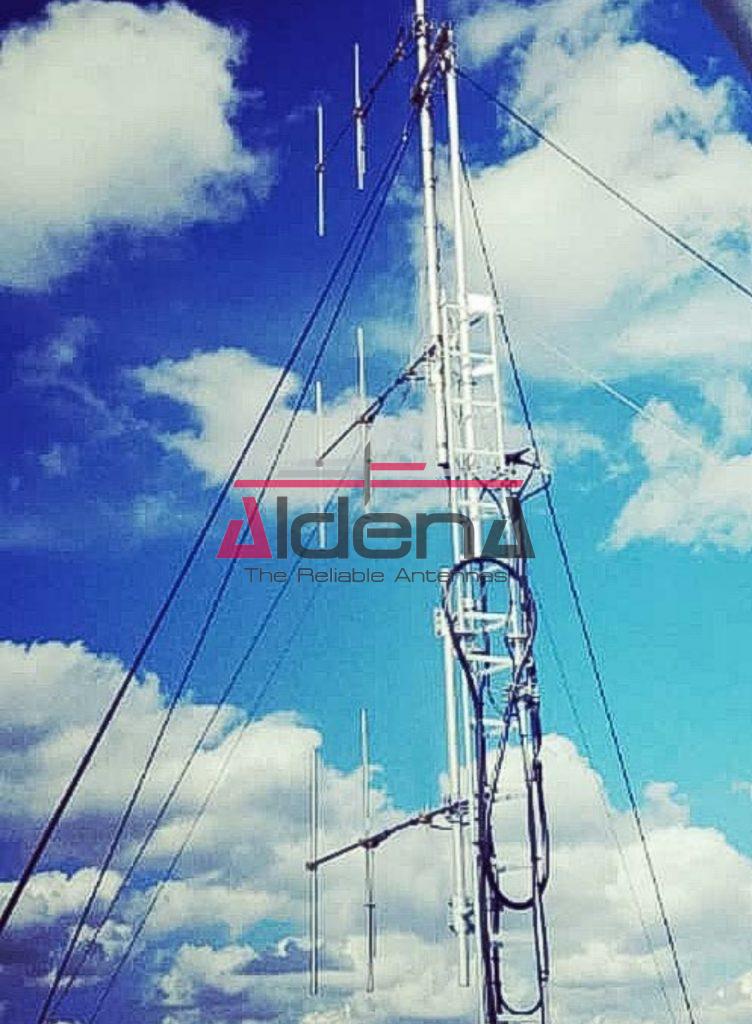

ARRAY ELECTRICAL DATA
FREQUENCY RANGE | 87.5 ÷ 108 MHz |
IMPEDANCE | 50 ohm |
CONNECTOR | EIA flange according to system power rating |
POWER RATING | The antenna system can accept any power according to requirements |
VSWR | ≤ 1.1 in the working frequency Antenna system VSWR value also depending from the supporting structure |
POLARIZATION | Vertical |

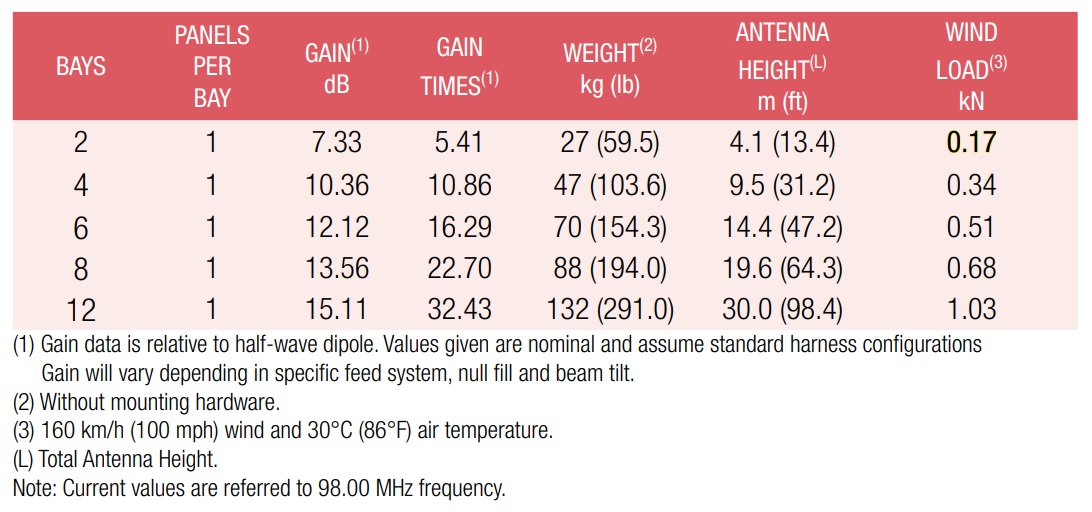

GAIN | Refer to table |
HORIZONTAL PATTERN | Any type according to requirement |
VERTICAL PATTERN | Null fill, beam tilt and special requirements to order |
ARRAY MECHANICAL DATA

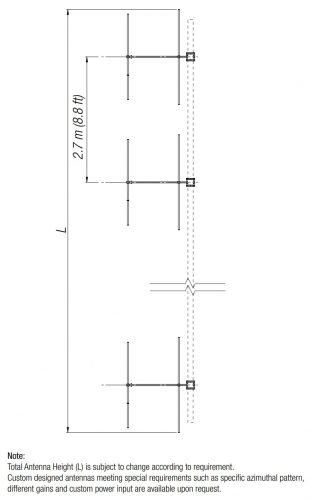

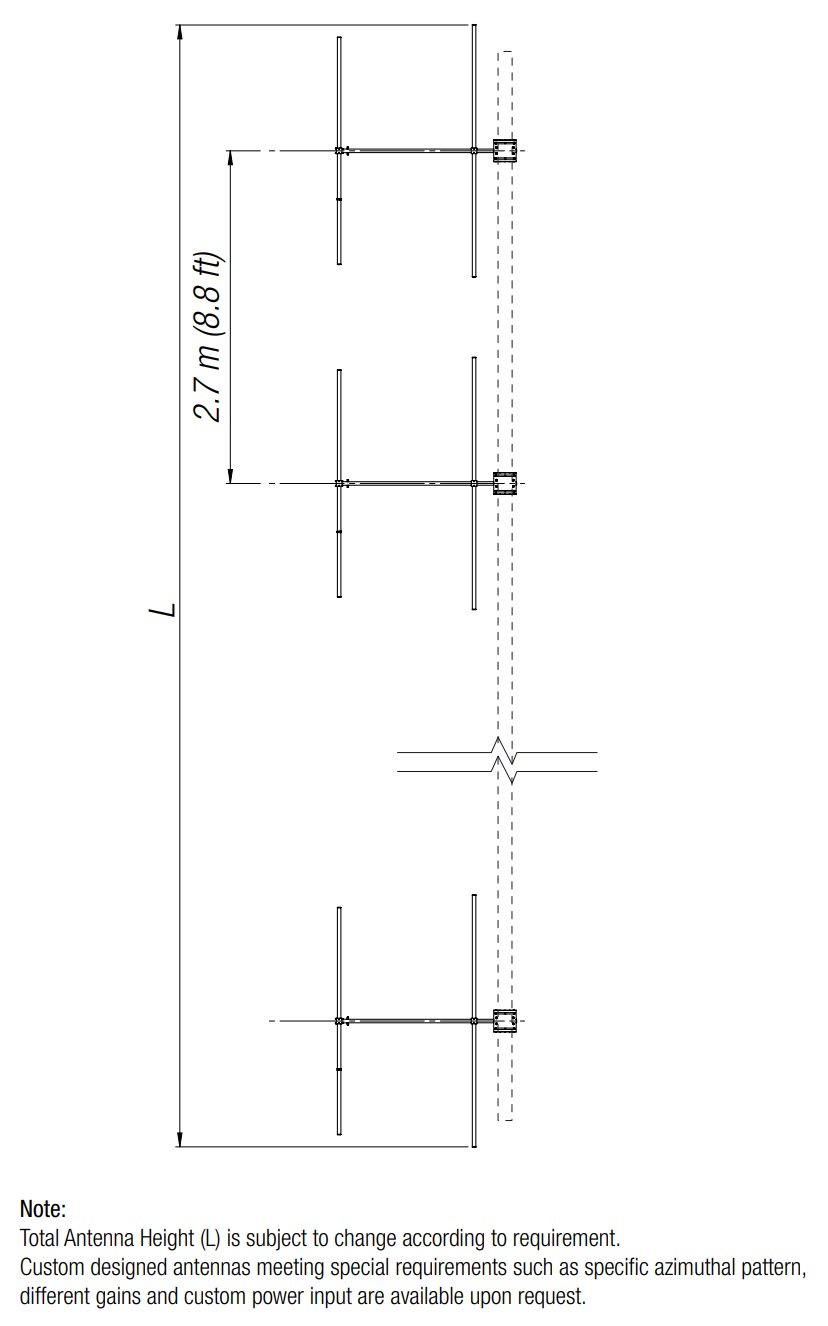

HEIGHT OF ARRAY | Subject to number of bays |
TOTAL NET WEIGHT | Refer to table |
WIND LOAD | Refer to table |
PRESSURIZABLE | No |
MOUNTING HARDWARE | Optional mounting for side mount configuration |
OPTIONS & SERVICES
PATTERN DESIGN | Custom azimuth and elevation (beam tilt and null fill) patterns can be designed to meet specific protection/coverage requirements |
PATTERN CERTIFICATION | Proof-of-performance factory test and pattern measurements on ALDENA test plan area |
MOUNTING HARDWARE | Turn-key antenna delivering Tower top/side spine Special hardware/brackets |
TRANSMISSION LINE | Transmission line system design and layout |
COMBINERS/FILTERS | Combiners/Filters to suit requirements can be supplied |
CALCULATION SERVICES | Coverage/interferfence simulations EM Near Field control and reduction (Environmental impact studies) |
ON-SITE SERVICES | Site Survey and Inspection Installation/commissioning and supervisioning Drive test & EM Field strength measurements After sales maintenance |
TRAINING | Techical training certification and consultancy |
Specifications are subject to change without notice.
